Automatic longitudinal storage tank and cylindrical ring rolling welding machine, long-arm rolling welding machine

Name: Automatic longitudinal storage tank and cylindrical ring rolling welding machine, long-arm rolling welding machine
Brand: Shanghai Trintfar Intelligent Equipment Co., Ltd.
SKU: FM-20
Price: 6,500.00 USD
Availability: InStock

Semua produk

Mesin Las Spot
(50)

Pengelasan penyimpanan energi
(15)

Mesin Pengelasan Disesuaikan
(78)

Jalur produksi Transformer Radiator Fin
(18)

Mesin Las Jahitan
(46)

mesin las tiang
(24)

Jalur Produksi Pengelasan Drum Baja
(43)

Mesin Las Proyeksi
(19)

Mesin Las Pantat
(41)

Mesin Las Laser Serat
(31)

Mesin Las Difusi
(6)

Mesin Las Wire Mesh
(13)

Lengan Robot
(16)

Mesin Las Lainnya
(44)

Produk terbaik

Longitudinal Resistance Seam Welder Machine Seam Welding Equipment

Mesin pengelasan jahitan logam Kondensator Pengelasan Pengelasan

Sertifikasi

Ulasan pelanggan

Anda juga bisa menghubungi alamat email atau WhatsApp saya. Menanti jawabanmu. sales-ftt@trintfar.cn WhatsApp: +86 15216883036 Shanghai Trintfar peralatan cerdas Co. Ltd

—— Teman-teman yang terkasih.

I 'm Online Chat Now

Automatic longitudinal storage tank and cylindrical ring rolling welding machine, long-arm rolling welding machine

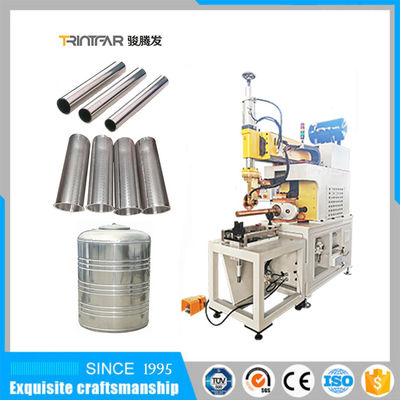

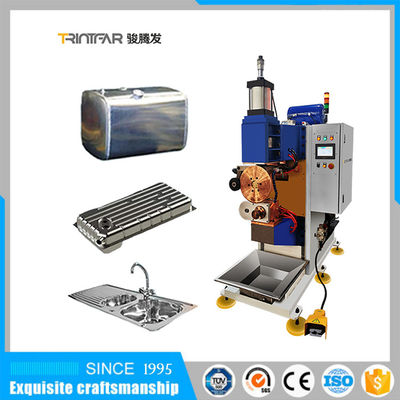

Gambar besar : Automatic longitudinal storage tank and cylindrical ring rolling welding machine, long-arm rolling welding machine

Detail produk:

Tempat asal:	Cina
Nama merek:	TRINTFAR
Sertifikasi:	CE
Nomor model:	FM-20

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Harga:	USD 5000-8000 set
Kemasan rincian:	KOTAK KAYU
Waktu pengiriman:	Dalam waktu 90 hari setelah pembayaran akhir
Syarat-syarat pembayaran:	L/C, D/A, D/P, T/T
Menyediakan kemampuan:	500 per tahun

Kontak

Automatic longitudinal storage tank and cylindrical ring rolling welding machine, long-arm rolling welding machine

Deskripsi

Nama:	Mesin pengelasan selang roller melingkar otomatis tangki longitudinal dan tong	Layanan Purna Jual Disediakan:	Dukungan Daring
Sertifikasi:	CE	Lebar Pulsa:	0,5~20ms
Merek Kepala Laser::	Opsional	Jaminan:	1 Tahun
Diameter titik fokus:	0,2 mm ~ 3 mm

Automatic longitudinal tank and barrel circular roller seam welding machine


Feature
1. Contains two standard models: horizontal seam seam welding machine and longitudinal seam seam welding machine;

2. A machine can also have both transverse seam welding and longitudinal seam welding. As long as you change the direction of the upper electrode wheel and change the lower electrode arm, you can easily switch between the two welding methods;

3. The single wheel is driven by three-phase stepless speed regulation, the welding speed is convenient to adjust, and the tangent speed of the upper and lower wheels is consistent;

4. Adopt adjustable stroke cylinder for pressure to avoid collision and damage of upper and lower electrodes;

5. It is widely used in metal manufacturing and processing industries such as hardware, home appliances, automobiles, motorcycle fuel tanks, basins, sinks, cans, etc.
Specification

			Item

Model

Maximum Short Current
KA

Rated Duty Cycle
%

Secondary Voilage
V

Rated Power
KVA

Electrode
Pressure
N

Electrode
Stroke
mm

Cooling Water
Lmim

			FM-20

			20

			50

			≈9.8

			≤50

			4700

			80

			24

			FM-25

			25

			50

			≈9.8

			≤70

			4700

			80

			24

			FM-40

			40

			50

			≈11.6

			≤120

			7300

			80

			30

			FM-60

			60

			50

			≈11.6

			≤160

			12000/18000

			100

			50

			FM-80

			80

			50

			≈11.6

			≤240

			12000/18000

			100

			50

			FM-120

			120

			50

			≈11.6

			≤300

			18000

			100

			60
